What are the different types of trammel head?

What are the different types of trammel head?

Shop for Trammel Heads

Trammel heads

 Most trammel heads come in pairs and can accommodate a beam between 19-38mm wide.    The length of their steel point(s) can be adjusted manually after the clamping nut is loosened. Once the steel points are at the required length, the nut is tightened to secure the points in place. Most trammel heads come in pairs and can accommodate a beam between 19-38mm wide. The length of their steel point(s) can be adjusted manually after the clamping nut is loosened. Once the steel points are at the required length, the nut is tightened to secure the points in place.

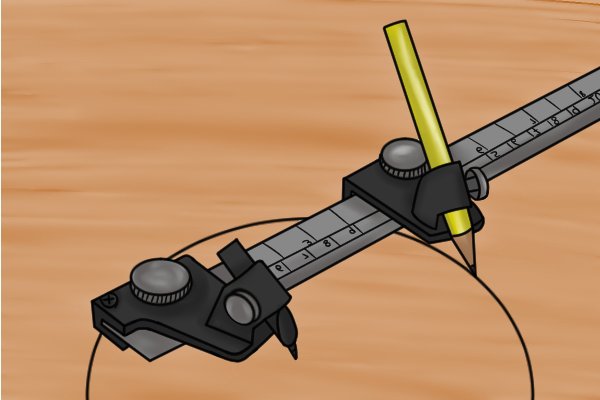

Flat-lying trammel heads

Flat-lying trammel heads have a lower centre-of-gravity and so they are easier to use than other trammel heads.     They are self supporting, so the user does not need to hold the trammel heads rigidly in place in order to draw a perfect circle or arc. Flat-lying trammel heads have a lower centre-of-gravity and so they are easier to use than other trammel heads. They are self supporting, so the user does not need to hold the trammel heads rigidly in place in order to draw a perfect circle or arc.

Trammel points

Trammel points are a more precise type of trammel head.    Their greater precision is a result of the size of the the tips of their steel points, which are smaller than those of other trammel heads.     This means that they can be used to draw circles and transfer measurements with a greater degree of accuracy than other trammel heads.
Trammel points are a more precise type of trammel head. Their greater precision is a result of the size of the the tips of their steel points, which are smaller than those of other trammel heads.This means that they can be used to draw circles and transfer measurements with a greater degree of accuracy than other trammel heads.
When choosing a type of trammel head you should consider three things:  Accuracy Capacity (the width of beam they can be used with) Ease-of-use When choosing a type of trammel head you should consider three things:

  • Accuracy
  • Capacity (the width of beam they can be used with)
  • Ease-of-use
