What are the different types of metal frame pliers?
What are the different types of metal frame pliers? |
||||
| There are several different types of metal frame pliers, all with slightly different features. | ||||
Section setting pliers |
||||
 |

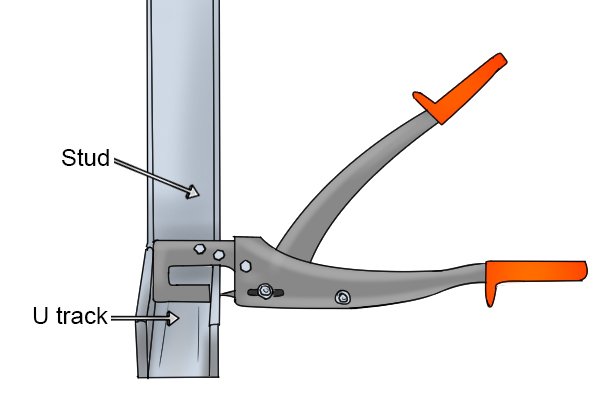

Section setting pliers are double-handed and are used to set C studs and U track.
They have a typical capacity of 1mm + 1mm. |
|||
 |
On these types of pliers, the jaw in on the underside of the body. When in the punching position, the pliers will be at a 90 degree angle to the metal stud wall. | |||
 |
There will need to be sufficient room to insert and operate the pliers. | |||

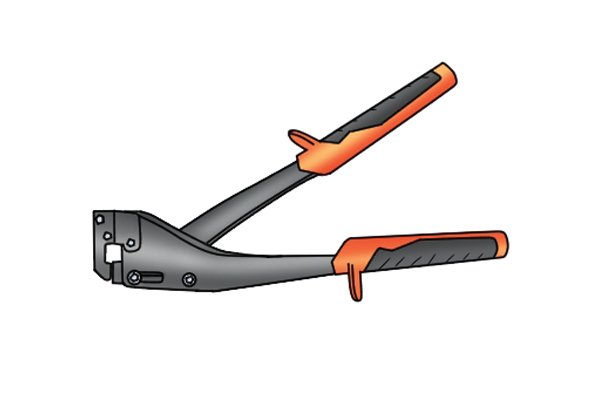

Universal section setting pliers |
||||
 |
Universal section setting pliers are also double-handed and used to set C studs and U track. They have a typical capacity of 1mm + 1mm. | |||
 |

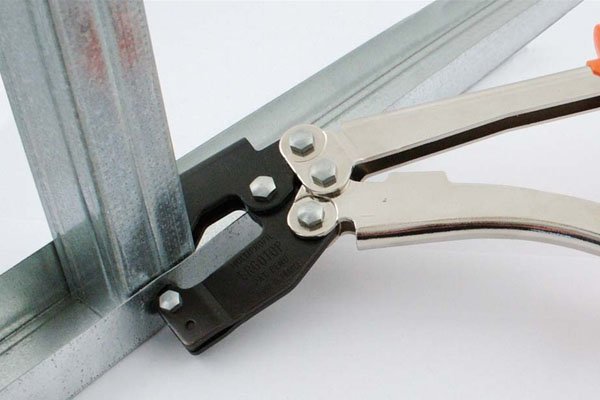

On these types, the jaws are on the end (or nose) of the plier. | |||
 |
Less space is required to operate the pliers because of the offset head and straight handles. | |||
 |

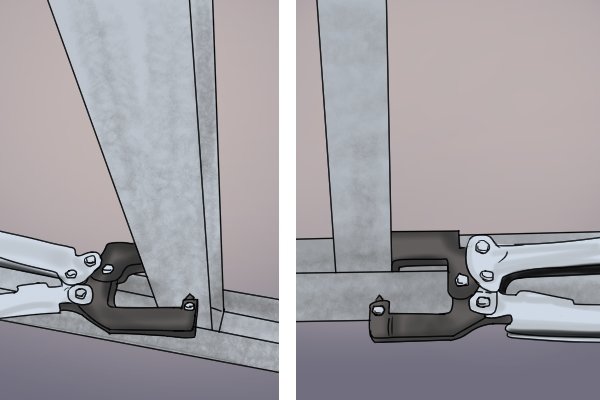

Left or right facing studs may be set by simply turning the pliers over. | |||
 |

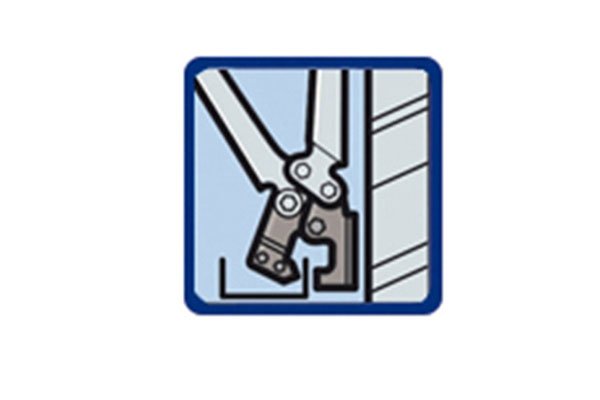

The pliers can be used close to an adjacent wall | |||
Limited access section setting pliers |
||||
 |
Limited access section setting pliers are double-handed and used to set C studs and U track. They have a typical capacity of 0.8mm + 0.8mm. | |||
 |
These pliers have been designed for use on metal stud walls built close to an existing wall. | |||
 |

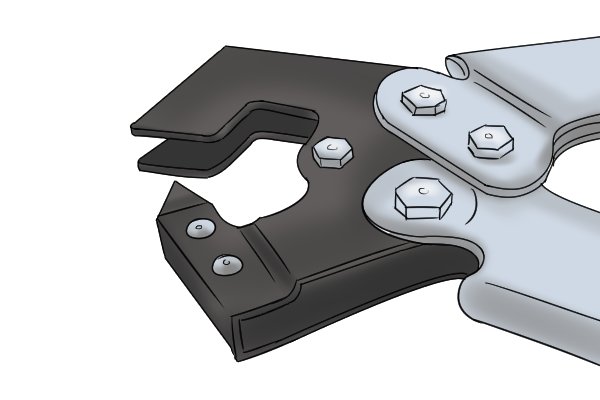

They have a narrow head… | |||
 |

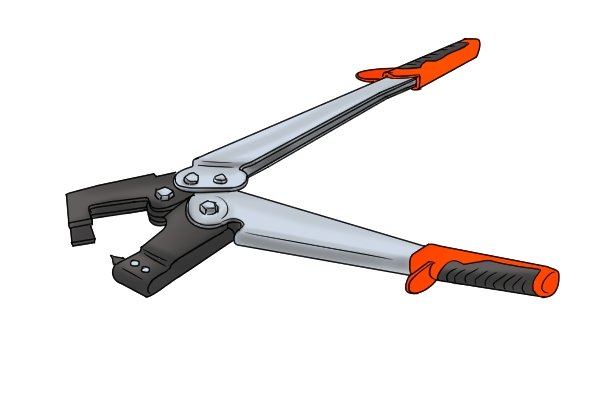

…and straight handles with the jaw on the end (or nose) of the pliers. | |||
 |
Left or right facing studs may be set by simply turning the pliers over. | |||
 |

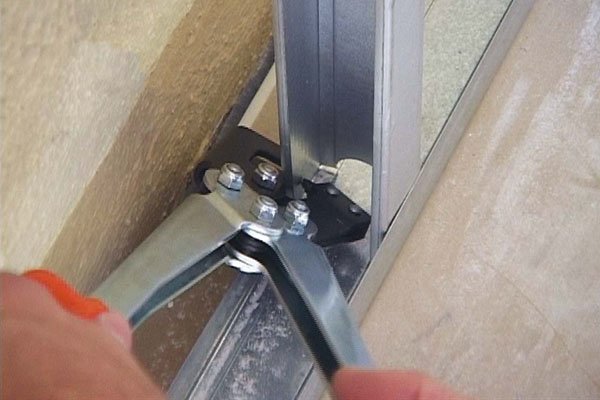

The design allows them to be used as close to an adjacent wall as possible. | |||

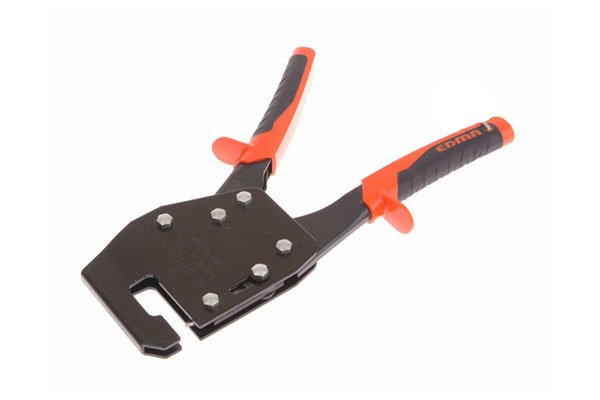

Single-handed section setting pliers |
||||
 |
Single-handed section setting pliers are used to set C studs and U track. They have a typical capacity of 1mm + 1mm. | |||
 |

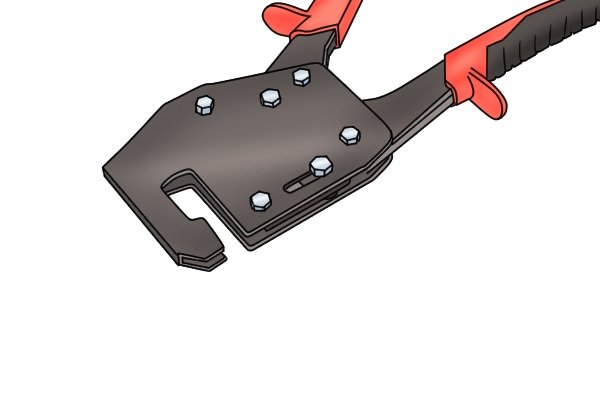

On these types, the jaw is on the underside of the body. | |||
 |
When in the punching position, the pliers will be at a 90 degree angle to the metal stud wall. There will need to be sufficient room to insert and operate the plier. | |||
