How to use a stud pot magnet

Plain stud pot magnets

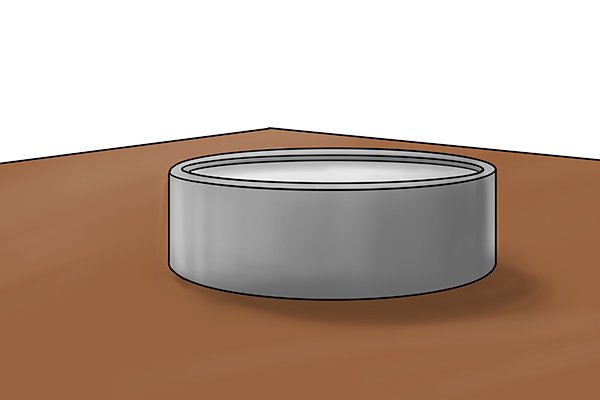

Step 1 – Position magnet

First, place the plain stud pot magnet through the hole in the non-ferromagnetic material.

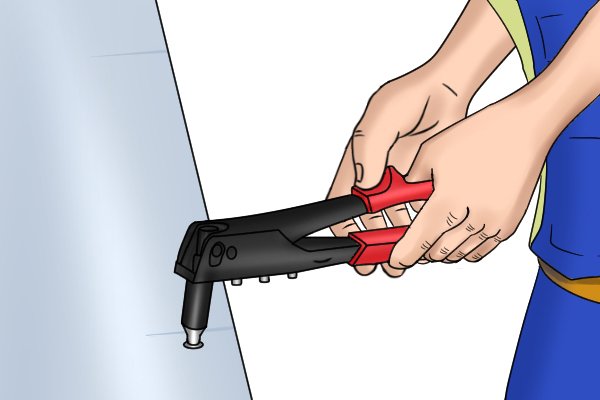

Step 2 – Rivet in place

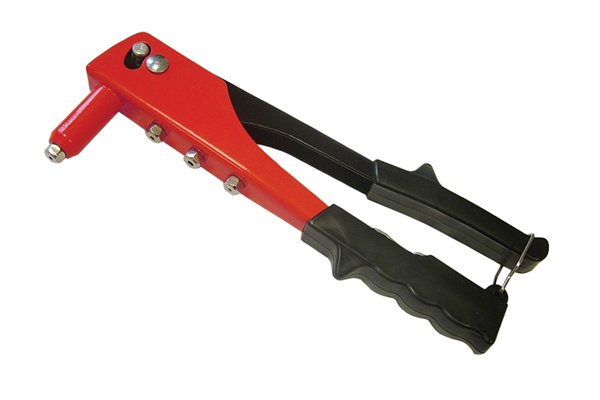

Then, on the side of the material where the stud is protruding, use the riveter to punch the stud into an umbrella shape, holding the magnet securely in place.

External threaded stud pot magnets

Screwing into place

For this method, the stud of the external threaded pot magnet needs to be inserted into the threaded hole. To attach with a screw, turn the stud pot magnet clockwise whilst applying pressure. Make sure you keep turning until the stud cannot be tightening any further.

To remove the external threaded stud pot magnet, simply turn the stud pot magnet anti-clockwise.

Nut

A nut is used when a threaded hole is not available.

First, push the external threaded stud through the hole in the non-ferromagnetic material. Next, place a nut on the end of the stud and turn it clockwise until the nut is attached securely to the external threaded stud.

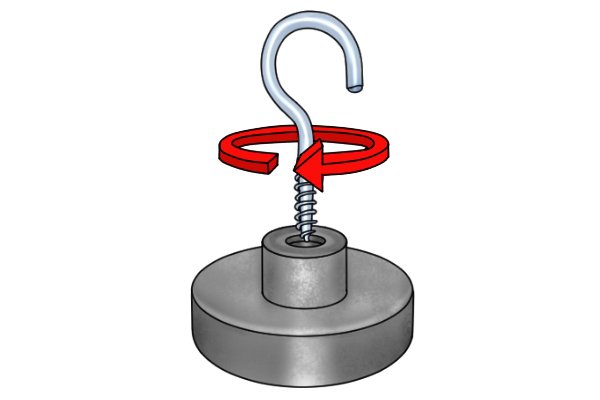

Internal threaded stud pot magnets
