How to use a wiggler to find the centre of a hole in a part?

How to use a wiggler to find the centre of a hole in a part

Shop for Centre and Edge Finding Sets


The ball probe can be used to locate the centre of a hole in a part. The ball probe can be used to locate the centre of a hole in a part.
Step 1 Insert the probe into the body of the wiggler. Step 2 Mount the wiggler into the chuck or collet of your milling machine or drill press.

Step 1 – Insert probe

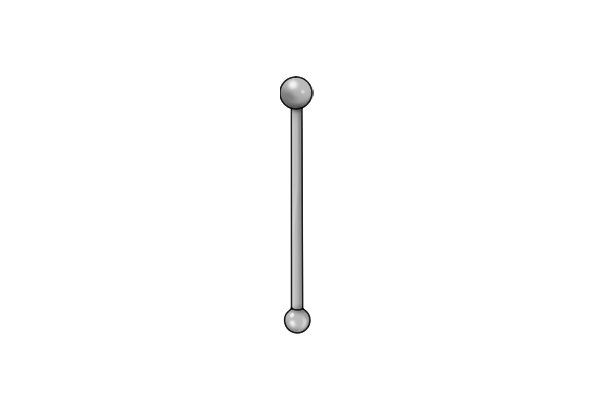

Insert the probe into the body of the wiggler.

Step 2 – Mount wiggler

Mount the wiggler into the chuck or collet of your milling machine or drill press.

Step 3 Secure the workpiece in a vice or base-plate underneath the spindle of the machine.

Step 3 – Secure workpiece

Secure the workpiece in a vice or base-plate underneath the spindle of the machine.

Step 4 Start the mill, setting your machine to run at 1000RPM. The ball probe will start to centre itself. Move the table so that the end of the ball probe finds the outside edge of the part. As the wiggler moves closer to the part, its wiggling motion will start to subside until the tool appears almost still.

Step 4 – Start machine

Start the mill, setting your machine to run at 1000RPM. The ball probe will start to centre itself.

Move the table so that the end of the ball probe finds the outside edge of the part.

As the wiggler moves closer to the part, its wiggling motion will start to subside until the tool appears almost still.

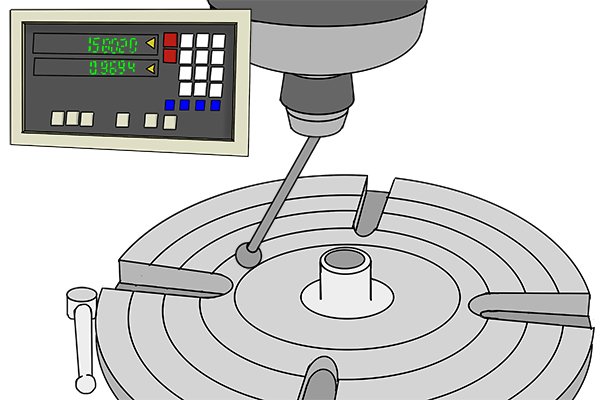

Step 5 Continue to move the table towards the tool until the wiggler breaks away and the probe kicks away from the body. It will do this when it reaches the part.

Step 5 – Move the table

Continue to move the table towards the tool until the wiggler breaks away and the probe kicks away from the body.

It will do this when it reaches the part.

Step 6 As soon as the wiggler breaks away, zero the x axis on the digital read out (DRO).

Step 6 – Zero x axis

As soon as the wiggler breaks away, zero the x axis on the digital read out (DRO).

Step 7 Traverse the table in the x direction so that the ball probe moves closer to the opposite edge of the part.

Step 7 – Traverse the table in x direction

Traverse the table in the x direction so that the ball probe moves closer to the opposite edge of the part.

Keep gradually moving the table until the wiggler finds the opposite edge and kicks out again. Keep gradually moving the table until the wiggler finds the opposite edge and kicks out again.
Step 8 To find the centre of the part on the x axis, half the value indicated on the DRO. In this case, the value shown is 9692, so 9692 ÷ 2 = 4846.

Step 8 – Half value on DRO

To find the centre of the part on the x axis, half the value indicated on the DRO.

In this case, the value shown is 9692, so 9692 ÷ 2 =  4846.

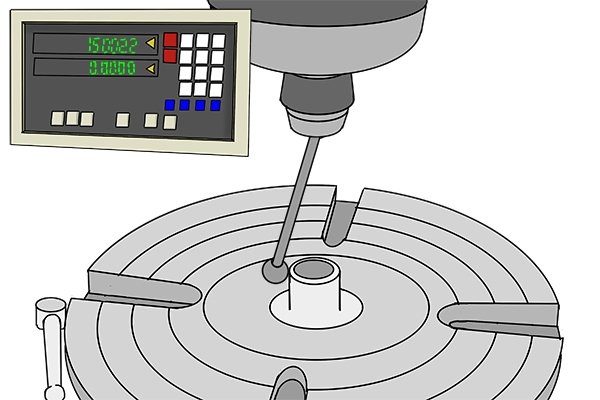

Step 9 Move the table until the x axis reading on the DRO is zero. The spindle of the machine will now be directly above the centre of the hole in the x direction.

Step 9 – Move table until DRO reads zero

Move the table until the x axis reading on the DRO is zero.

The spindle of the machine will now be directly above the centre of the hole in the x direction.

Repeat this process on the y axis. Repeat this process on the y axis.
The spindle of the machine should now be positioned directly above the true centre of the hole. The spindle of the machine should now be positioned directly above the true centre of the hole.
