How to pre-drill screw and nail holes with a brad point bit




 Shop for Brad Point Bits

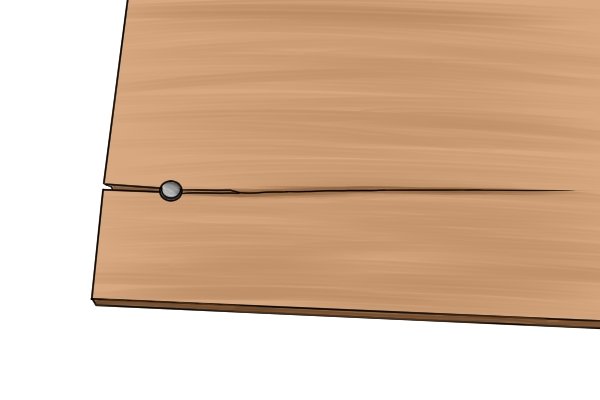

 A plank that has split due to a nail being hammered in too close to its end.

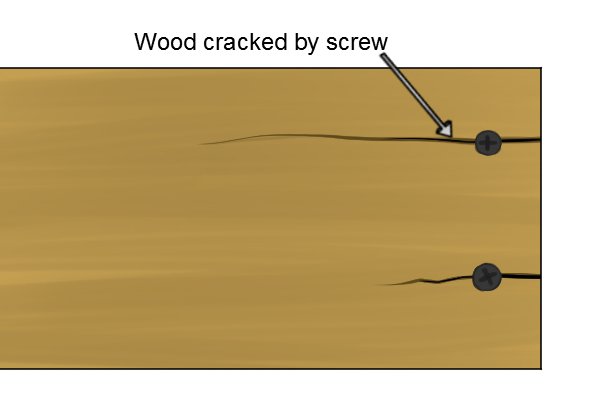

Screws and nails are commonly used to join two pieces of wood together. Unfortunately, hammering in a nail or driving in a screw near to the end of a piece of timber can force apart the wood fibres and make it split, more than likely ruining part of a project in the process.

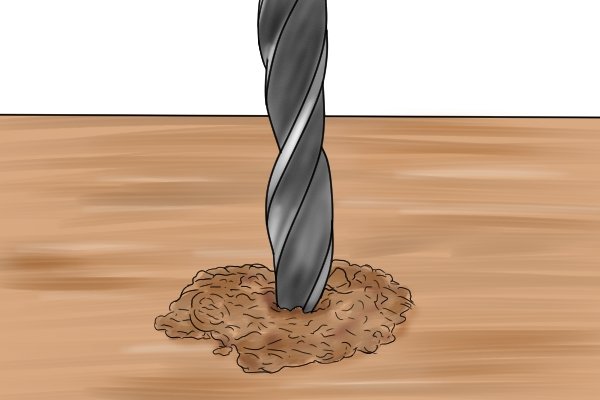

 Pre-drilling a nail hole in wood with a brad point bit

To avoid this risk, it's best to minimise the amount of pressure on the wood by pre-drilling a hole that is almost as wide as the shank of the screw or nail you will be using in either piece of wood where the screw or nail hole will be near to the edge.





Choosing the right size drill bit

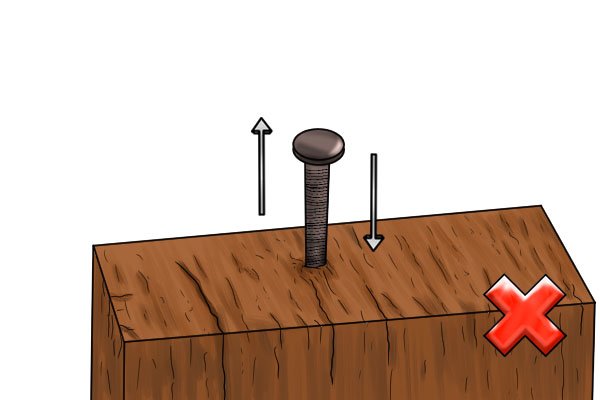

 Diagram of a loose nail that can slip into and out of a hole that is too wide to fit it properly

If you use too large a drill bit, your screw or nail will slide in and out of the hole, which will be no good for holding anything in place!



 A nail hole that was pre-drilled with a brad point bit that was too narrow, and has therefore split despite being pre-drilled

Too narrow a bit will mean that the problem isn't solved, and the wood will still split.

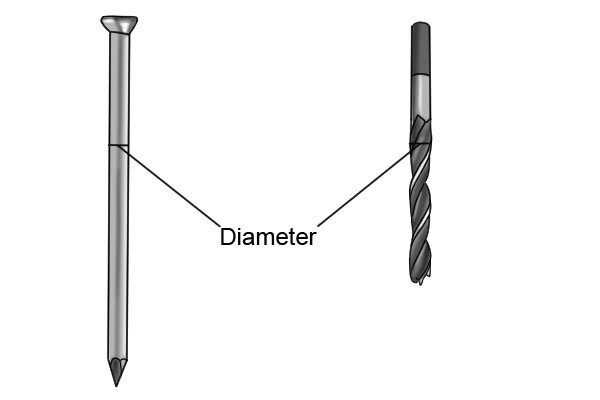

 Diagram showing where the measurement for the diameter of a nail and a drill bit are taken

You can find the right size drill bit by eye, by comparing the shank of the nail (the part that doesn't taper, below the head) to the twisted part of your brad point bit. You're looking for a bit that is very slightly smaller in diameter than your nail's shank.



 Diagram showing how to measure the shank of both a brad point bit and a wood screw

The same is true for finding the right sized bit for a screw hole. The screw's shank is the part located between the head and the thread.

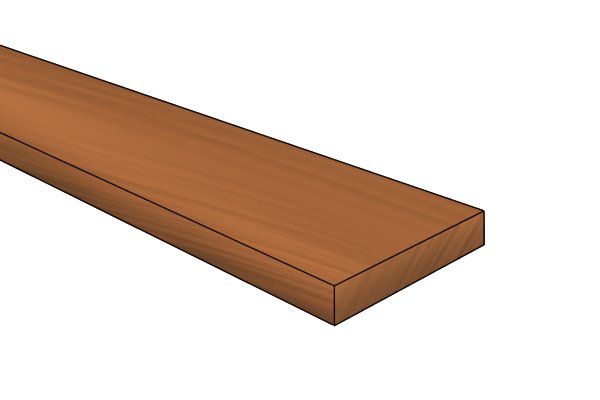

 A piece of scrap wood, which can be used to help prevent tear out when drilling with a brad point bit

Measuring more precisely

If you're worried that you won't be able to judge your drill bit size accurately by eye, you can always test the process on a piece of scrap wood with a spare screw or nail. You can also check the size of your nails or screws following the steps below.

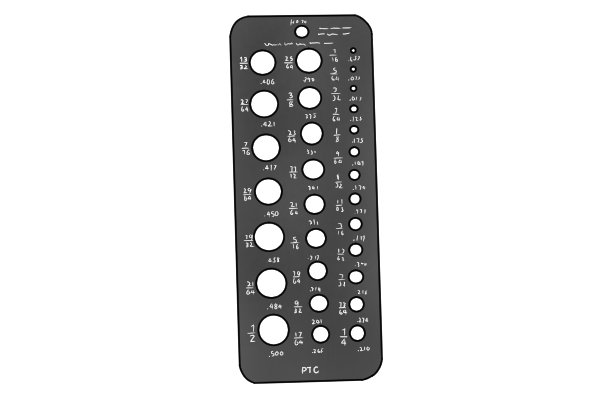

 An example of a drill gauge card, which can be used to find out the diameter of a nail through trial and error

Nails

You can use a drill gauge card to check the diameter of a nail by locating the hole on the card that the nail fits into snugly. The diameter of this hole will be indicated on the card - these tools are designed to measure the diameter of drill bits and nails.

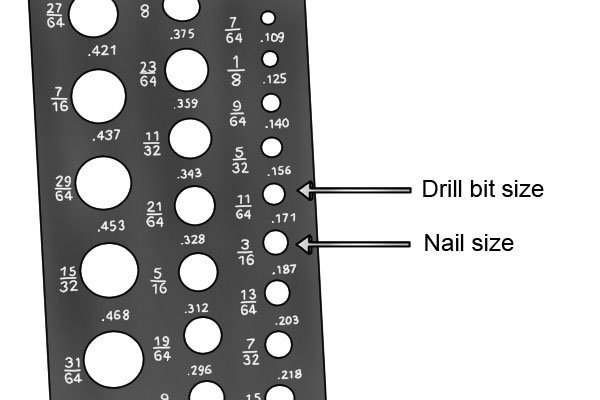

 Diagram showing how to correctly select the right size of drill bit to pre-bore a hole for a nail

Locate the next smallest hole on the card. This is the size of drill bit that you should use.

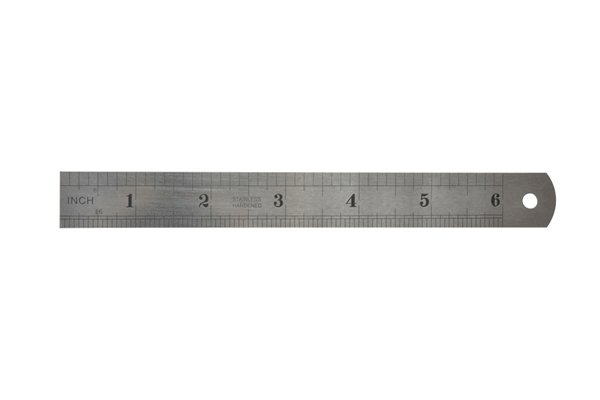

 A steel rule, which can be used to measure the shank of a screw to help choose which size of brad point bit to use when pre-drilling a screw hole

Screws

If you want to more accurately determine the size of a screw's shank, you can always measure its diameter yourself with a steel rule or, for maximum accuracy, a set of calipers. A woodworking project is unlikely to require this level of precision, though, so don't worry about trying to get too many decimal places into your measurements!





Making the hole


 A DIYer hammering a nail into a pre-drilled hole that has been bored with a brad point bit

Once you have chosen your drill bit, drill your hole and then insert your screw or nail. The wood should not split, leaving you with a sturdy joint.
