What toolmaker’s clamp sizes
are available?
|
|
|
|
|
|
|
|
|
|
|
|
|
Shop for Toolmakers Clamps |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
The clamps are measured by capacity and throat depth. |
|
|
|
|
|
|
|
|
|

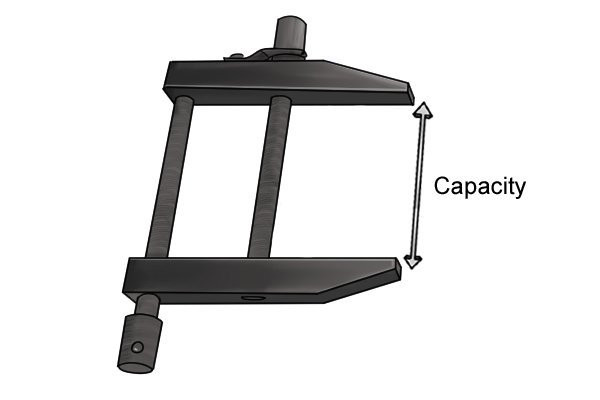

Capacity
|
|
|
|
|

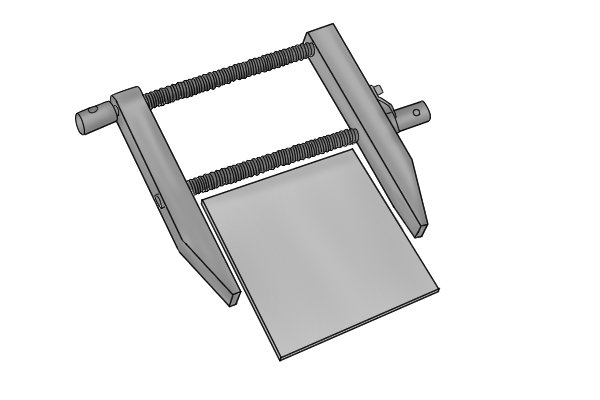

The capacity is how much material can be clamped between the upper and lower jaw. |
|
|
|
|
|
|
|
|
|
A larger capacity means the jaws of the clamp open wider, holding more material. |
|
|
|
|
|
|
|
|
|

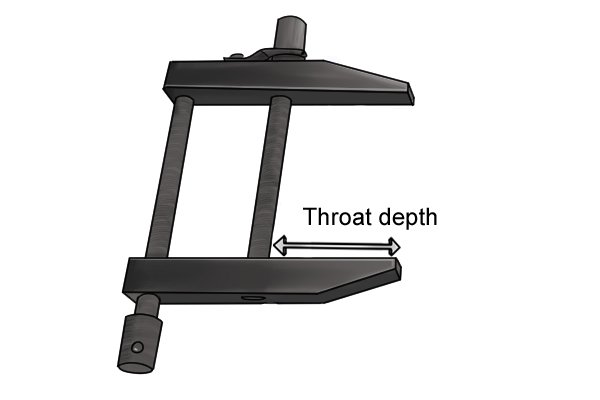

Throat depth
|
|
|
|
|
The throat depth is how deep the jaws of the clamp are. The depth is measured from the edge of the jaws to the centre. |
|
|
|
|
|
|
|
|
|
A larger throat depth provides a greater reach. |
|
|
|
|
|
|
|
|
|

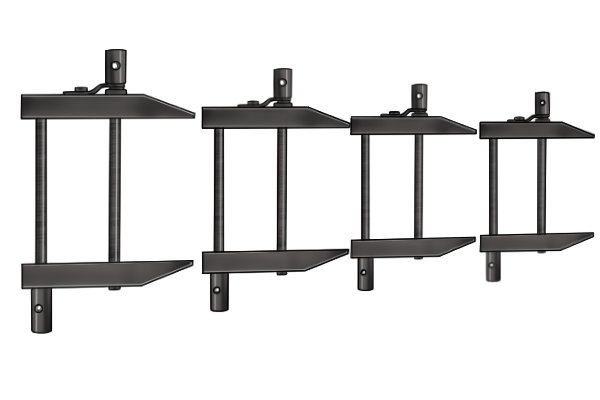

The sizes available are:
| Capacity |
32 mm
(1 ¼”)
|
44 mm
(1 ¾”) |
57 mm
(2 ¼”)
|
70 mm
(2 ¾”)
|
| Throat depth |
20.5 mm
(1 3/16“)
|
25 mm
(1″)
|
30 mm
(1 7/32“)
|
45 mm
(25/32″)
|
|
|
|
|
|
|
|
