How do you use a tank cutter with a hand-held drill?

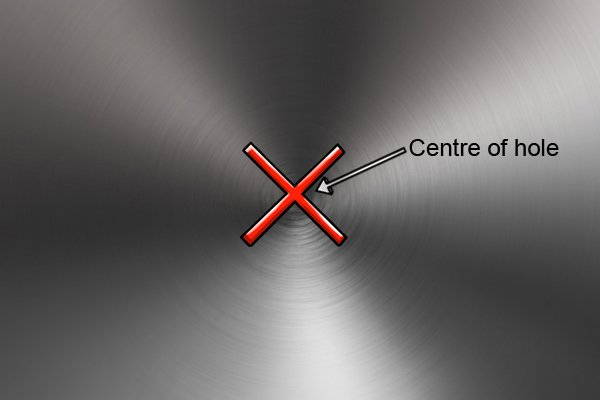

Step 1 – Mark workpiece

Mark on your work the point at which you want the centre of your hole to be.

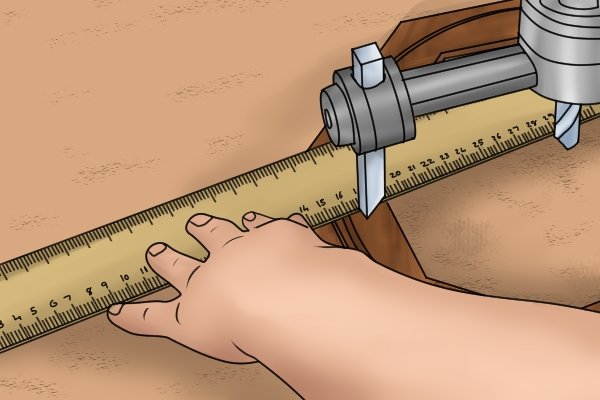

Step 2 – Set distance between pilot drill and blade

Use a ruler to set the distance between the pilot drill and the cutting point of the blade. This distance should be equal to the radius of the circular hole you want to cut.

For example, if you are looking to cut a circle with a diameter of 70mm (2.7in), this distance will be 35mm (1.3in).

70 ÷ 2 = 35

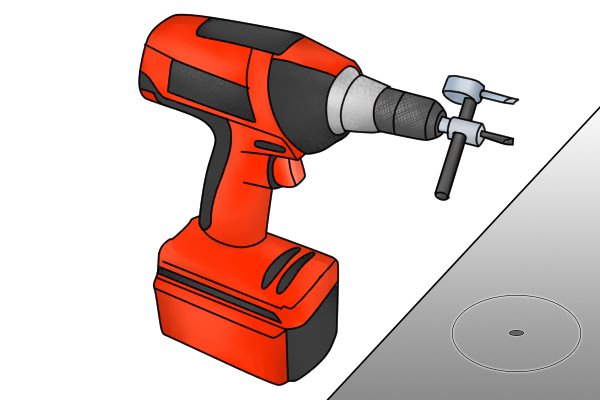

Step 3 – Install tank cutter in drill

Install your tank cutter into the chuck of your drill.

Step 4 – Set drill speed

Set your drill to the slowest possible speed.

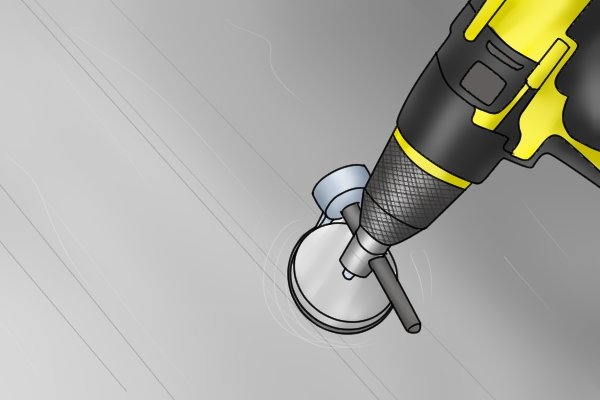

Step 5 – Cut test hole

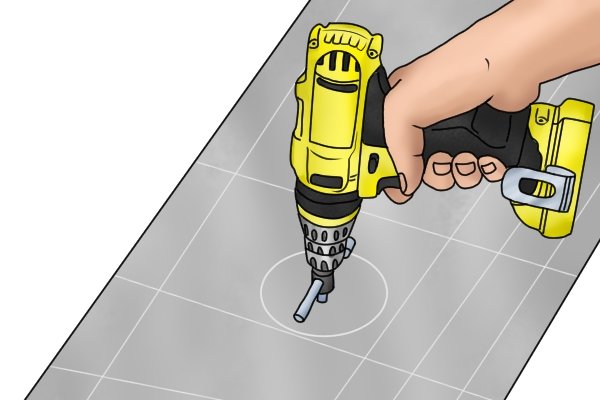

Turn on your drill.

Approach the work as slowly as you can and, whilst applying pressure with the drill, cut a test hole in a piece of scrap material.
