What is Plywood?



What is plywood?



  Plywood, manufactured board, sheet products

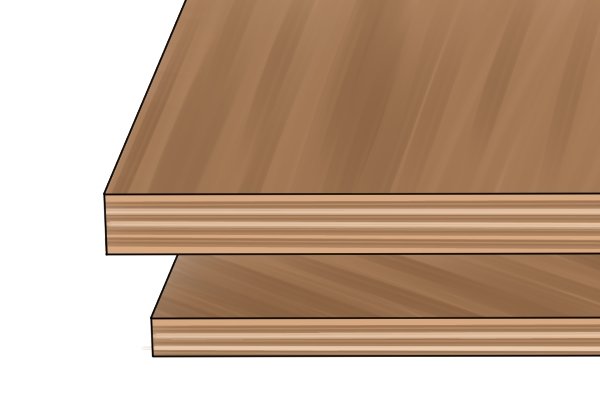

Plywood boards or “sheets” are made up of three or more thin layers of real wood that are glued together.



The layers are known as “plies”, hence the name “plywood”. Generally, the thicker the plywood, the more layers it has.

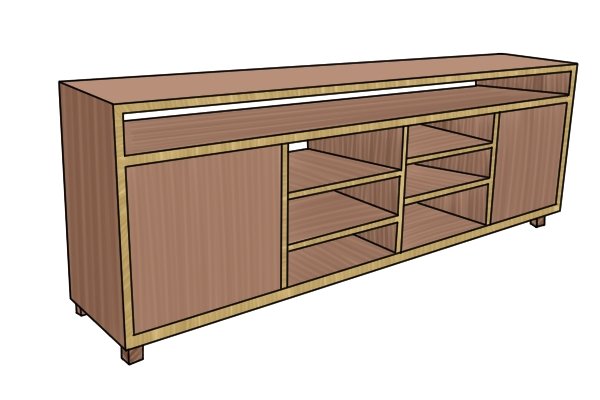

  Furniture made from plywood, manufactured board, sheet products

It is a versatile material with a huge range of applications, from wall and floor covering to moulds for concrete structures, designer furniture to packaging.

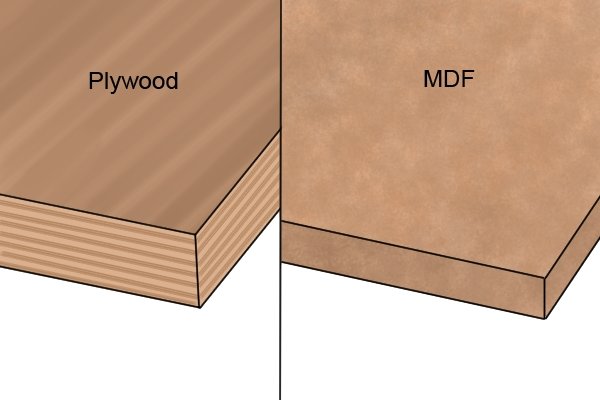

  Plywood and MDF, manufactured boards, sheet material

Plywood is considerably stronger than some other wood-based sheet products, such as medium density fibreboard (MDF).



See our page, What is MDF?, for more information about medium density fibreboard.

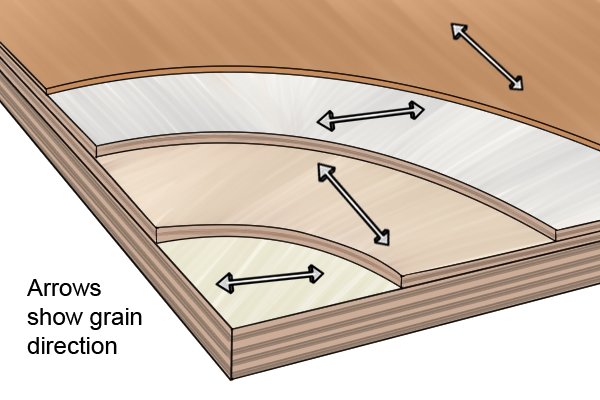

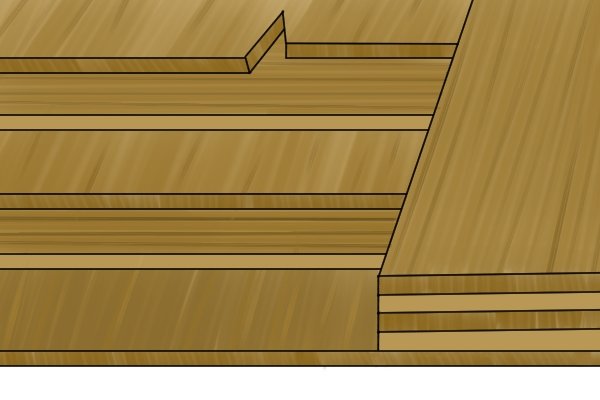

  Alternating grain of plywood layers, plywood, manufactured board, sheet materials

Plywood’s strength is due to the way the direction of each layer’s grain is alternated in relation to adjacent layers.





Wonkee Donkee on wood grain; plywood; sheet matetials



  Alternating grain direction in layers of plywood give this type of manufactured board its strength

The rotation of the direction of each layer’s grain – called cross-graining – is often 90 degrees (a right-angle). This means that every other layer has its grain oriented in the same direction, with a layer oriented at 90 degrees in between. However, rotation can be as little as 30 degrees. In some thicker plywood, seven layers may be arranged successively at 0, 30, 60, 90, 120, 150 and 180 degrees).







  Cross graining in plywood reduces the likelihood of splitting, reduces expansion and shrinkage and gives consistency of strength across the board

Rotation of the grain has a number of benefits. It:

  • Reduces the likelihood of splitting when sheets are nailed at the edges

  • Reduces expansion and shrinkage, giving better dimensional stability

  • Gives the plywood consistency of strength in all directions across the board






A brief history of plywood


  The earliest known use of plywood was in Egypt around 3500 BC with veneers glued together crosswise in a similar way to today's plywood

Ancient Egypt

Wooden articles made in Ancient Egypt around 3500 BC are the earliest known instances of the use of plywood. They were made from sawn veneers glued together crosswise in a very similar way to today’s plywood.



  Pywood was used in furniture making in Europe in the 18th and 19th centuries

China, England and France

Around 1,000 years ago, the Chinese shaved wood and glued it together for use in furniture.



The English and French made panels on the general principle of plywood in the 17th and 18th centuries.



  Plywood was not used in used in construction work ujtil the 20th Century - previously playwood was mostly used for furniture and doors

From household to construction

Early examples of plywood, usually made from decorative hardwoods, were most commonly used in the manufacture of household items such as cabinets, chests, desk tops and doors.



Plywood made from softwood for use in construction work made its appearance in the 20th century.





What is it used for?


  Small boats are among many other things - such as walls, floors, stairs, furniture, toys - that can be made out of plywood

Huge range of applications

The range of uses for plywood, both indoors and outdoors, seems endless. In construction, it can be used in walls, floors, roofs and stairs; as shuttering (a kind of mould) for retaining concrete while it sets; and in temporary framework to give a shape for the laying of bricks or stone when making archways.





  Plywood is used extensively in furniture manufacture

Furniture

Plywood is also still used extensively in furniture-making.

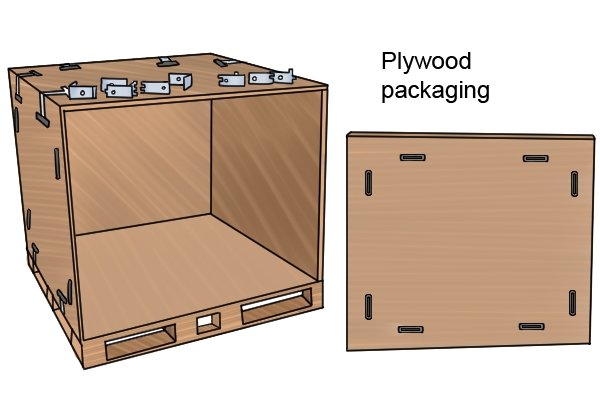

  Plywood is used for packaging as well as in construction, furniture-making and thousands of other applications

Packaging, model-making and art surfaces

Other uses include secure packaging, sports and playground equipment, and even the bodywork of some vehicles and light aircraft.



Thinner plywood is often used in model-making, and some artists paint on it after first coating it with gesso – a sealing compound that provides a slightly rough surface, which is excellent for retaining paint.



  The De Havilland Mosquito flown in the Second World War was made partly of plywood

Designed for particular purposes

Different types of plywood are designed for particular purposes. For instance, high-strength plywood, made from mahogany and/or birch was used in the construction of some World War II aircraft, whereas marine plywood, manufactured from durable face and core veneers with few defects, performs better in humid and wet conditions.





Characteristics

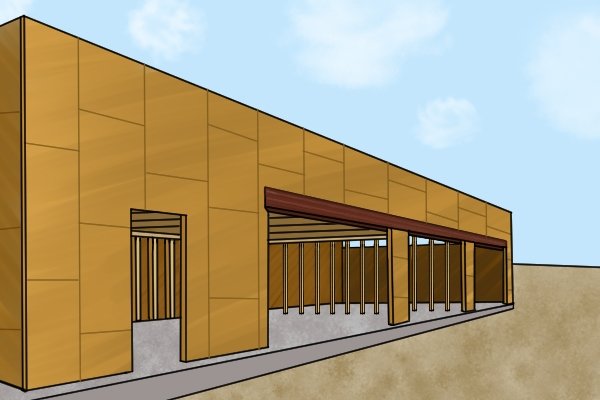

  Plywood excels as a sheet material in construction work

Strength

Plywood is strong, generally quite resistant to impact damage, comparatively light and relatively easy to cut and “work” with tools.



It excels as a sheet material to form or cover large, flat-sided, sloping or level shapes like walls, floors, some types of roof and large containers.

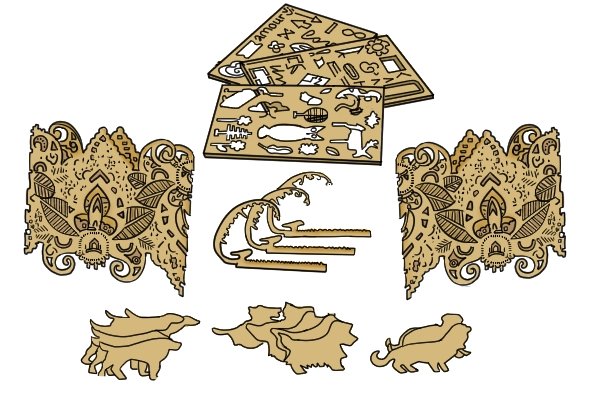

  Thinner sheets of MDF are great for cutting out intricate shapes in craft work and other applications

Useful for intricate work

Some types of plywood are useful for more intricate work such as model-making, wooden jig-saw puzzles and small boxes.

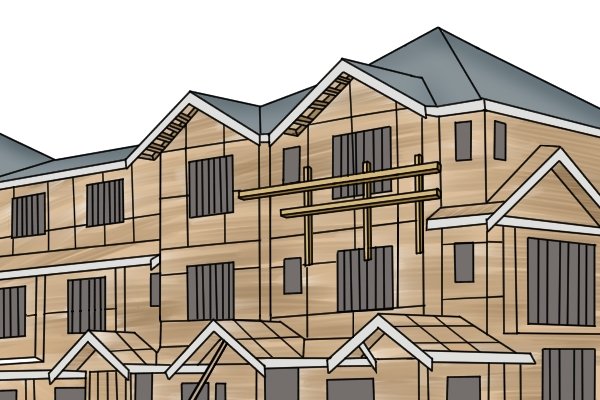

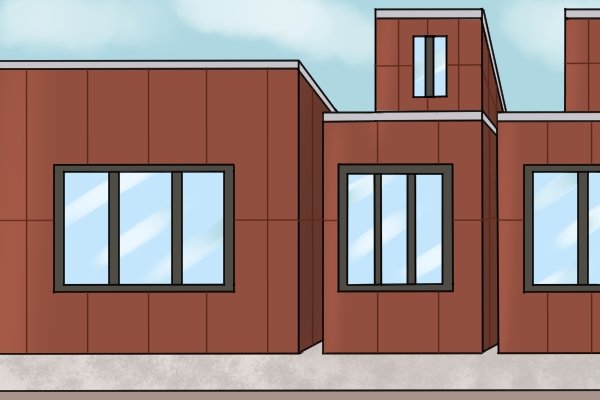

  Plywood is a commonly used sheet material for exterior cladding

Large panels quickly cover big areas

Because plywood is available in large panels, big areas can be covered with a minimum of edge-joining and the wide choice of thicknesses makes it suitable for a large range of applications from thick shelving to thin cladding.





How is plywood made?

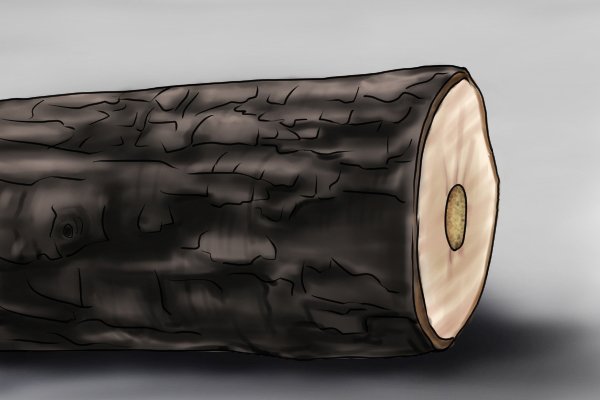

  Bigger straighter logs are used for making plywood, manufactured board

Plywood manufacture usually requires logs – referred to as “peelers” – that are greater in diameter and and straighter than the average log from which wood is cut.



The bark is removed before the peeler is heated and soaked for anything between 12 and 40 hours prior to cutting.

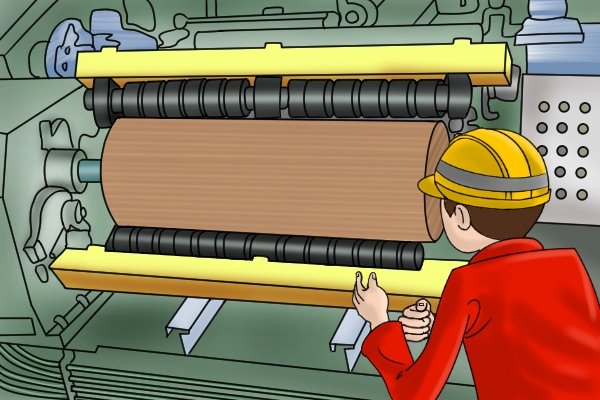

  Log placed in peeling lathe for cutting into long thin sheets to make plywood

It is then placed in a large peeling lathe and turned on its long axis…

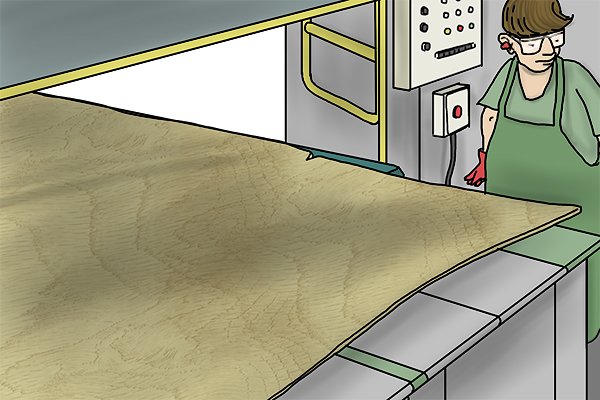

  Long sheet of wood cut by lathe when making plywood   … while a long blade peels a continuous sheet, or ply, from the log.

  Cutting long, individual strips of ply into initial lengths and widths when manufacturing plywood   The long sheet is cut into initial lengths and widths and surfaces are scanned for any defects.

  Plies pressed and bonded together by machine to make plyboard

The plies are then pressed and bonded together with glue, and the resultant boards cut to their final dimensions.



The final operation is usually the sanding – smoothing – of the boards. Some boards have coatings applied (such as melamine or acrylic) and their edges sealed.





What are the different types of plywood?

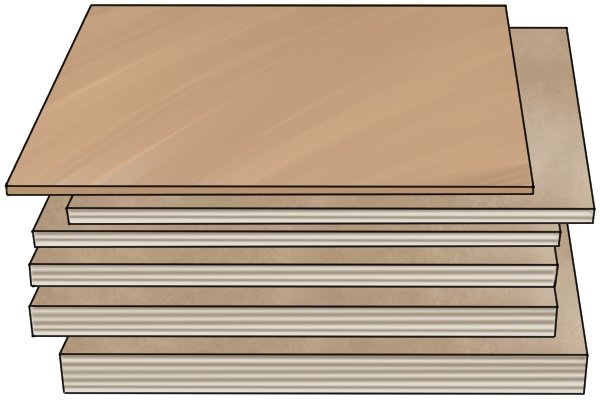

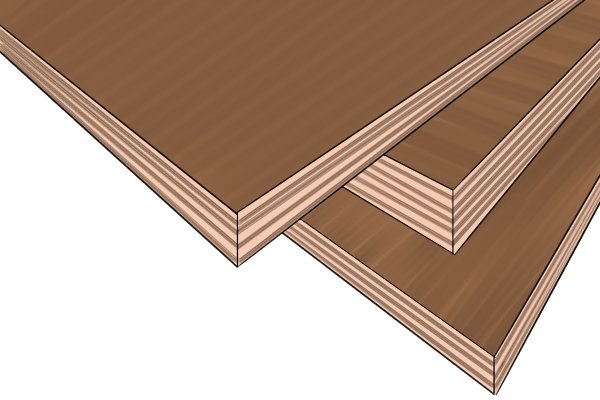

  Various types and thicknesses of plywood are available

There is a vast range of plywood types. Below are some of the main types available. Speak to your builders’ merchant or take a look online if you’re looking for something very specific to fulfil a particular need.



  Softwood plywood is used for construction and industrial purposes

Softwood plywood

This is a very common type of plywood used generally for construction and industrial purposes.



  Hardwood plywood is used for walls and floors among many other applications

Hardwood plywood

This type has greater strength and stiffness. Its resistance to damage and wear makes it suitable for heavy-duty applications, including floors and walls.



  Tropical plywood can have very attractive grain and is used in furniture-making and the construction industry

Tropical plywood

Made of tropical wood from Asia, Africa and South America, this type is superior to softwood plywood because of its extra strength and evenness of plies. It is the preferred choice of many in the construction industry. Some examples feature very attractive grain and colouring, making it suitable for inclusion in some types of furniture.


  Aeroplane; aircraft plywood; high-strength plywood used in aeroplanes; man-made boards; sheet materials

Aircraft plywood

Made from mahogany or birch, and often both, this high-strength plywood has its layers glued together with adhesive that has extra resistance to heat and humidity. It was used for some aircraft in World War II, and today is used in various applications that demand similar strength and resistance.



  Decorative plywood is used in furniture-making and as wall panels; man-made boards; sheet materials

Decorative plywood

This plywood has an attractive hardwood outer ply for used in furniture making, wall panels and other “high-end” applications. Other types of decorative outer ply include formica and resin-impregnated paper.



  Stovepipe hats were made with flexible plywood

Flexible plywood

Sometimes referred to as “hatter’s ply” because of its use in “stovepipe” hats in Victorian times, flexible plywood or “bendy ply” is used to make curved shapes.



  Boat made from marine plywood; moisture resistant; plywood for humid and wet conditions

Marine plywood

Marine plywood, as its names suggests, is the choice for boats and many applications where humid and wet conditions are encountered. It’s resistant to fungal attack and delamination – when the plies begin to separate usually due to the effects of dampness. The disadvantage is that it is far more expensive than many other plywoods.



  Fire-resistant plywood is treated with chemicals to improve its resistance to fire

Fire-retardant plywood

This is plywood that has been treated with chemicals to improve its resistance to fire.

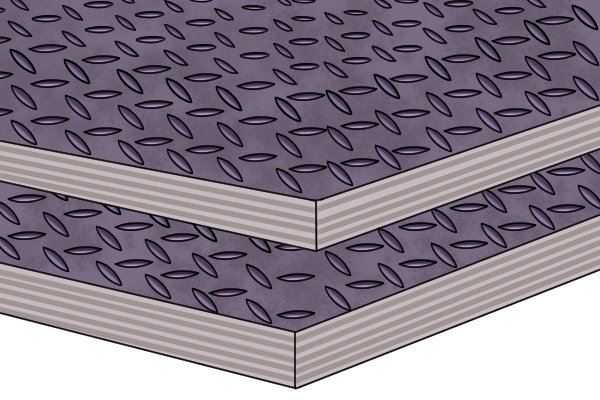

  Phenol-faced plywood can have patterns press into it for non-slip and decorative use

Phenol-faced  plywood

A hot laminate is fused to the surface of this plywood. The surface can then be left smooth for formwork – for instance, a mould for concrete structures or a temporary structure to hold brick arches and other shapes in place until the mortar has set – or patterns can be pressed into it for non-slip or decorative applications.





What sizes are available?


  What sizes of plywood are available; tape measure

Maximum and minimum sheet sizes often depend on the particular type of plywood, but the most common standard size is 4ft X 8ft (1220 X 2440mm). Bigger and smaller sheets are often available, usually varying by 1ft (300mm) increments.



  Different thicknesses of plywood; plywood sizes; dimensions of plywood

Thicknesses for plywood range from 1/16 inch (1.4mm) to 1 inch (25mm), although thicker sheets are available for some specialist applications.





How is plywood graded?


  Different grades of plywood depend on quality of wood and number of defects in visible plies

Different types of plywood are graded in different ways, depending on the type of wood they are made from or their country of origin. The grading relates to the quality of the wood used and whether one or both outer plies, or faces, have very few or many defects, and if any of the defects have been repaired as part of the manufacturing process.



      Wonkee Donkee on plywood grading; sheet materials; face grading

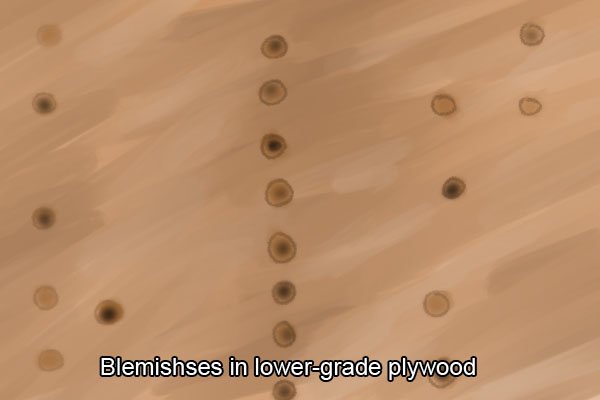

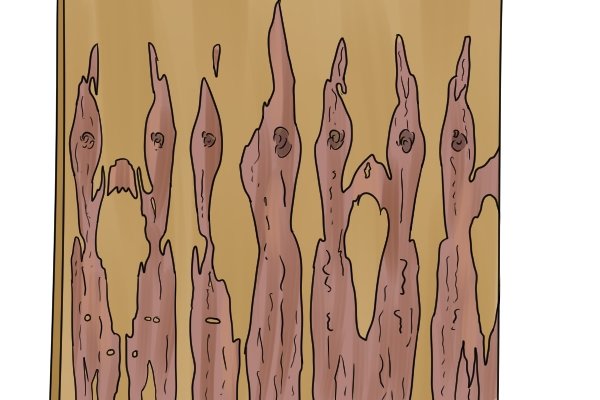

  Blemishes in lower-grade plywood; plywood defects; how plywood is graded

For instance, the grades for birch plywood are:

  • S Grade (highest) – only minor knots and characteristics

  • BB Grade (medium) – spliced-in oval patches replace any major knots and defects

  • WG Grade (lower) – open defects on smaller knots with some repaired larger knots

  • C Grade (lowest) – open defects allowable

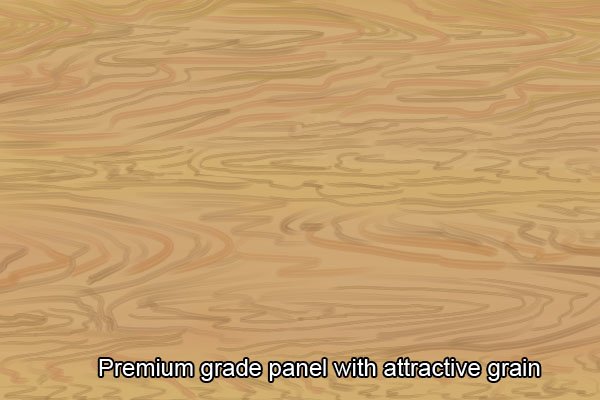

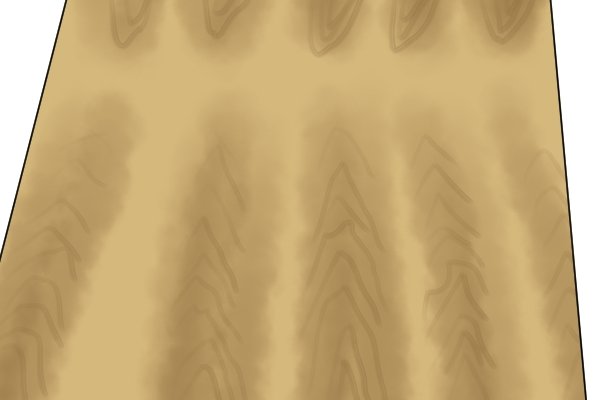

  Premium grade plywood panel with attractive, complex grain

There are also Brazilian, Chilean, Finnish, Russian, Swedish and several other grades. Check the grade before buying to ensure the plywood meets the requirement for the particular job.





What standards are there for plywood?


  Plywood standards; standards in plywood manufacture

There are various standards – European and BS (British Standards) – for plywood used in a wide range of applications.



For instance, in the construction sector, the European standard for wood-based panels, EN 13986, requires that plywood used in the construction sector must comply with one of the three performance classes within EN 636, and suppliers must provide evidence to substantiate this.

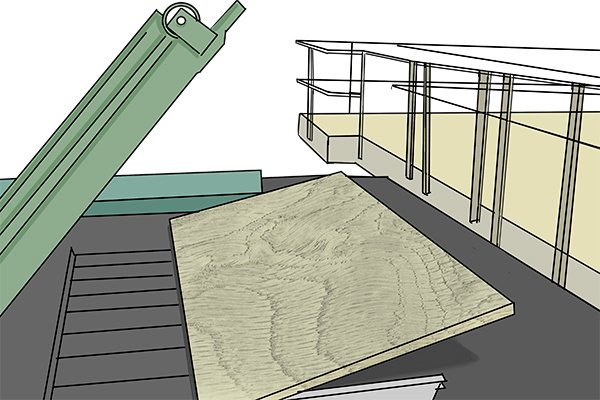

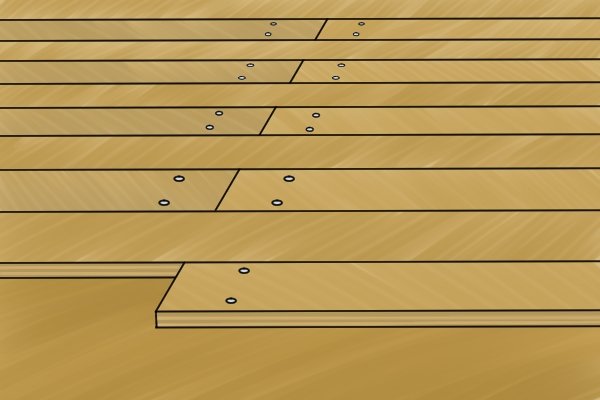

  Plywood flooring may be covered by European and British Standards

The performance classes are based on the moisture resistance of plywood used in various parts of buildings such as roofs, partition walls, floors and timber frame external walls.



  Some plywoods combine excellent water resistance and strength properties making them suitable for outdoor use   Some types combine excellent weather resistance and strength properties for outdoor use, complying to specific standards such as BS 1088 (plywood in marine use), while the structural standard code BS 5268-2:2002 applies to the strength of plywood used in construction work. It’s advisable to check that any plywood you buy meets the appropriate standard for the intended use.



 Advantages and disadvantages of plywood


      ADVANTAGES    DISADVANTAGES




Advantages and disadvantages





  • Constructed of layers that are glued together, so has great strength compared to, for instance, MDF

  • Resistant to warping, cracking and twisting

  • Less expensive than full-wood boards, which makes it economical as a construction material

  • Available in many different types to suit an extremely wide range of applications





  • The layering of thin plies can make plywood susceptible to water damage over time

  • Becomes heavy when wet and needs a protective covering if left or used outside
