How to use a pipe bending spring?

How to use a pipe bending spring?

Shop for Pipe Bending Springs

pipe bending spring Using a pipe bending spring is the cheapest and simplest way to put a bend in a piece of copper pipe. As a general rule, the minimum bend radius should be equal to 4 times the outside diameter of the tube.Tube diameter 22mm – minimum bend radius = 88mm

Tube diameter 15mm – minimum bend radius = 60mm

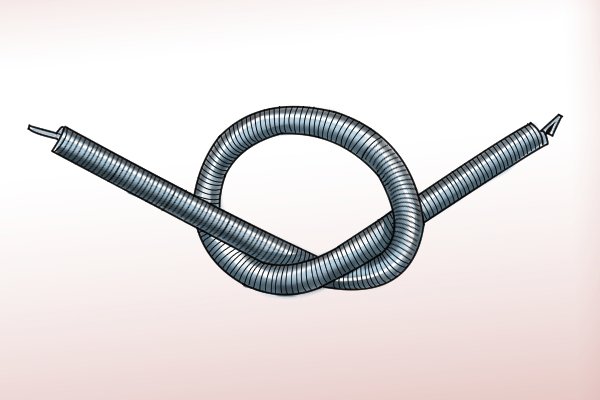

Internal pipe bending springs

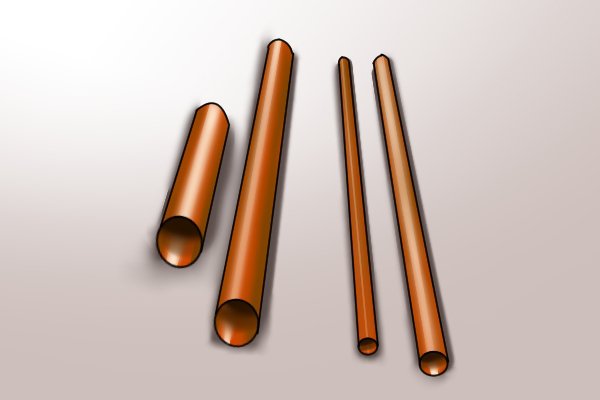

different lengths of copper pipe, pipe bending spring, plumbing tool

Step 1 – Select your pipe

Select the piece of copper pipe you wish to bend.

A longer piece of copper pipe will be easier to bend compared to a very small piece, as you will be able to apply more leverage. It is always best to bend a longer piece and then cut it down to size afterwards.

cut end of copper pipe, bent, pipe cutter, pipe bending springs, plumbing tool

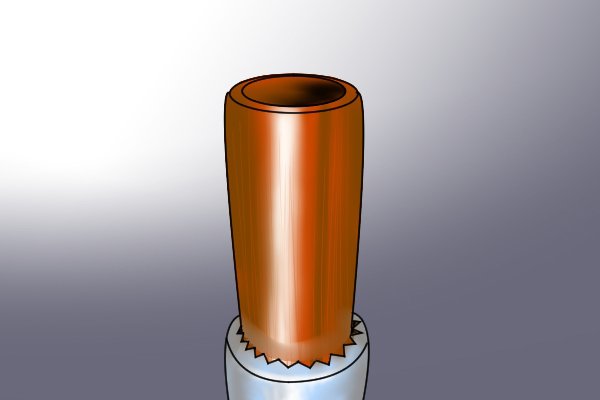

Step 2 – Deburr the end of the pipe

If your pipe has been previously cut with a pipe cutter tool, the cut end may curve slightly inwards and you may not be able to fit your spring into the end.

If this is so, either deburr the end of your pipe with a deburrer or widen the hole with a reamer until the hole is big enough. Alternatively, you could cut the end off with a hacksaw.

feed the spring into the copper tube, pipe bending spring, plumbers tool

Step 3 – Feed the spring into the pipe

Once the end of your pipe will accept the spring, feed it down into the pipe, tapered-end first.

Oiling your bending spring before you insert it will make it easier to retrieve from your pipe at the end of the process. If your pipe is to be used on drinking water, use olive oil.

pipe bending spring, how to use, plumbers tool

Step 4 – Leave a little bit showing

Make sure you leave a small amount showing so that you can retrieve it again afterwards!

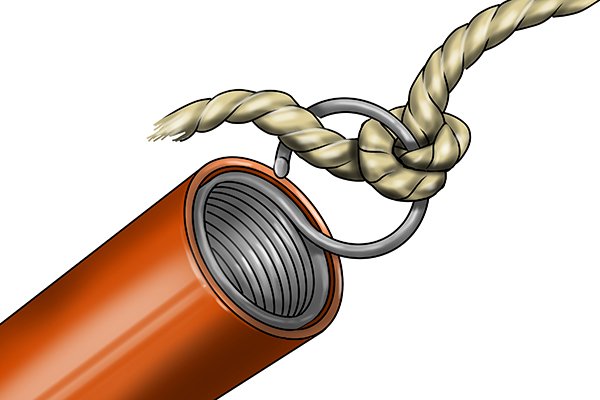

If you need to insert the pipe bending spring all the way into your pipe, attach a piece of strong string or wire to the ring end so that you can pull it out again.

pipe bending spring, bend over the knee, copper pipe, plumbers tool

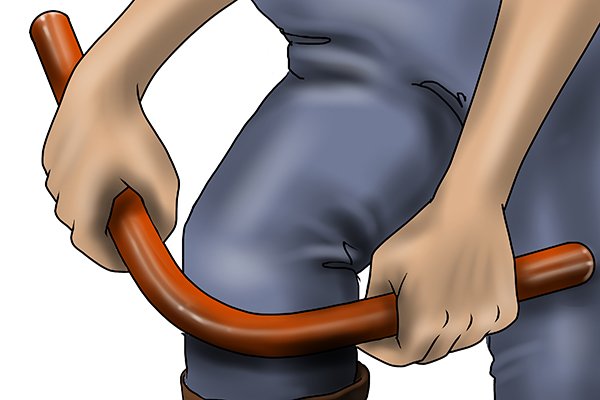

Step 5 – Bend the pipe

Locate the place at which you want your bend to be and place it against your knee.

Gently pull back on the ends of the pipe until the desired angle is created. If you pull back too quickly or violently you risk creasing the pipe. Copper is a soft metal and should not need a great deal of strength to bend it.

Wonkee Donkee TOP TIP

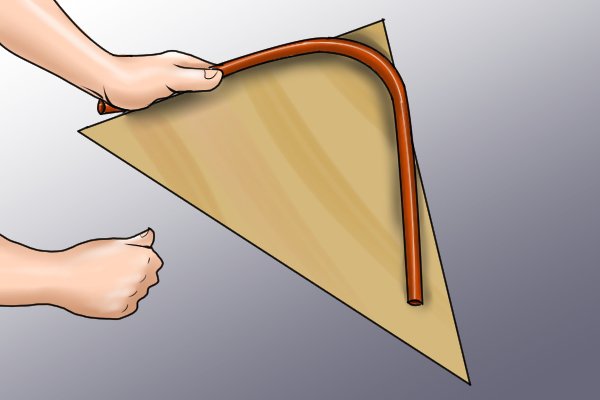

over-bend your pipe, pipe bending spring, plumbing tool Because it can be difficult to remove the spring when you have reached your desired angle, it is advised to over-bend slightly and then slacken it off a bit. This will make the spring easier to retrieve.
removing the spring, pipe bending spring, copper pipe, plumbing tool

Step 6 – Pull the spring out

Retrieve your spring from inside the pipe.

If you find this difficult, you can slip a tommy bar (or screwdriver) into the ring end and twist it clockwise to slacken the springs.

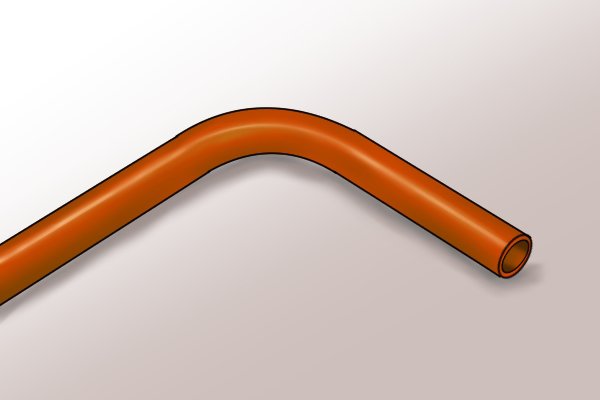

bent copper pipe, pipe bending spring, pipe bender plumbers tool Your job is complete!

External pipe bending springs

external pipe bending spring, copper pipes, plumbing tool If you need to bend a pipe that has a diameter smaller than 15mm then you should use an external pipe bending spring.
external pipe bending spring, plumbing tool 10mm copper pipe, inserting the copper pipe

Step 1 – Feed the pipe into the spring

Feed the pipe into the spring via the wider tapered end.

external pipe bending spring, pipe bender, plumbers tool, copper pipe

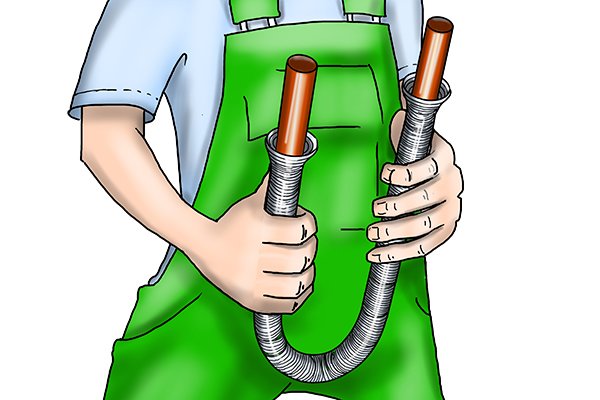

Step 2 – Bend the pipe

Apply pressure to the ends of the pipe and gently form the desired bend. Bending too quickly or violently will result in a creased or rippled pipe.

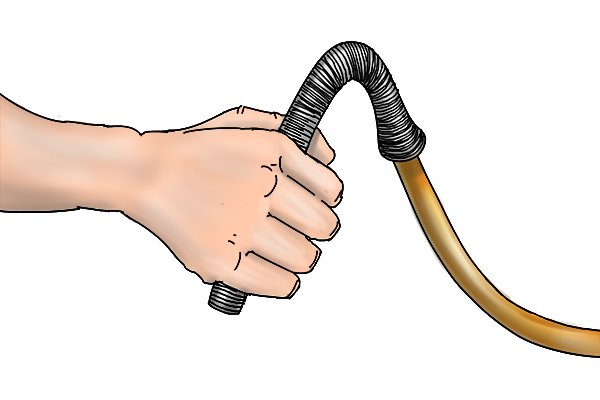

removing the external spring, pipe bending spring, plumbers tool, copper piping

Step 3 – Slide the spring off

Slide the spring off the pipe. If you find this difficult, try twisting as you pull to slacken the springs.

bent copper pipe, pipe bending spring, plumbers tool Your job is complete!
